In the Semiconductor Industry and MEMS Integration

Silicon wafers are the cornerstone of the semiconductor industry, serving as the base material for fabricating integrated circuits (ICs) and various semiconductor devices. In semiconductor manufacturing, silicon wafers act as the substrate for depositing thin layers of different materials. Through processes like photolithography, etching, and doping, these layers are transformed into electronic components with specific functions.

Moreover, Si wafers are used to produce discrete semiconductor devices such as transistors and diodes, which are essential for regulating electrical current and enabling functions like signal amplification, switching, and rectification in electronic circuits. Silicon’s high thermal conductivity and low thermal expansion coefficient make it an ideal material for manufacturing these crucial devices.

The integration of Micro-Electro-Mechanical Systems (MEMS) technology further expands the potential of silicon wafers, allowing for the incorporation of tiny sensors, actuators, and other microstructures onto the wafer’s surface. MEMS technology enhances the precision, responsiveness, and functionality of semiconductor devices, leading to advances in fields such as automotive systems, telecommunications, and biomedical devices.

Silicon Wafer Manufacturing Process

The production of Si wafers involves a highly specialized and controlled process to ensure the high purity and precise dimensions necessary for semiconductor applications. The process can be broken down into several key steps:

1. Raw Material Preparation

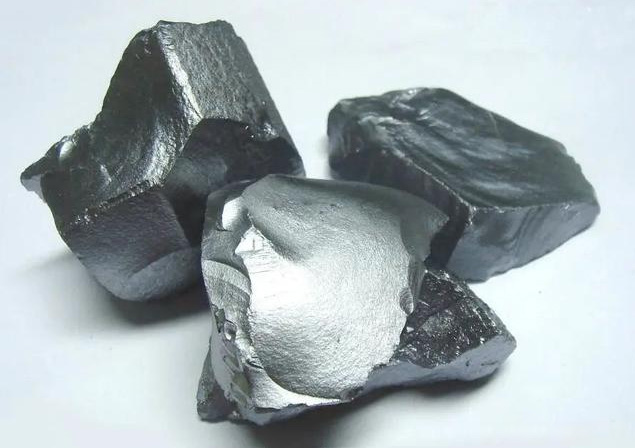

Silicon wafers are manufactured from high-purity silicon, typically sourced from either polycrystalline silicon (polysilicon) or single-crystal silicon (monocrystalline silicon). This silicon is extracted from quartz (SiO₂) found in nature and then subjected to purification processes to achieve the required levels of purity. Any trace elements, such as aluminum or iron, are removed to create pure silicon for further processing.

2. Polysilicon Refining

To produce polysilicon, quartz is first reduced through a chemical process where silicon dioxide is reacted with carbon, resulting in silicon and carbon monoxide (SiO₂ + C → Si + CO). This raw silicon is further purified through chemical reactions and other refining techniques, creating the highly pure polysilicon needed for semiconductor manufacturing.

3. Single Crystal Silicon Growth

The two primary methods for growing single-crystal silicon ingots are the Czochralski (CZ) method and the Float Zone (FZ) method. In the Czochralski method, polysilicon is melted in a crucible, and a small seed crystal of silicon is introduced to the molten silicon. The seed crystal is slowly pulled upwards, causing the molten silicon to crystallize around it, forming a single-crystal ingot. In contrast, the Float Zone method involves using an electric field to melt a zone of polysilicon, which is then recrystallized by moving the melt zone along a silicon rod. This method produces single crystals with high purity and electrical resistance.

4. Silicon Ingots Processing

After the single-crystal ingot has been grown, it is processed into wafers. The first step involves grinding the ingot to achieve a uniform diameter, followed by slicing the ingot into thin wafers using a diamond wire saw. The resulting wafers are thin and often have sharp edges, so they undergo a process known as edge profiling or chamfering, which smooths the edges to prevent damage during later manufacturing stages.

5. Wafer Polishing

Polishing is a critical step in wafer production, ensuring the wafer surface is smooth, defect-free, and uniform in thickness. This is essential for the wafer to be used as a substrate in semiconductor device fabrication. The polished wafer is inspected for flatness and surface quality, as even minute defects can impact the performance of electronic devices.

6. Testing and Packaging

After polishing, the Si wafers are tested for their electrical properties, such as resistivity. If required, an epitaxial layer may be grown on the wafer to enhance its electrical characteristics for specific applications. Once testing is complete, the wafers are packaged and shipped to semiconductor manufacturing facilities, where they will be used to fabricate integrated circuits and other devices.
