What is FAB Process

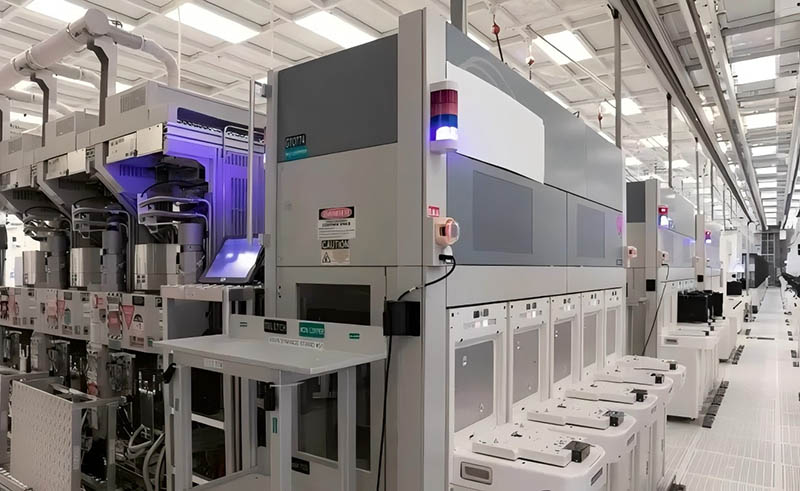

The FAB process, also known as the semiconductor manufacturing process, involves a series of complex steps that transform semiconductor materials, such as silicon, into integrated circuit (IC) chips. This highly sophisticated manufacturing process is essential to the modern electronics industry, enabling the production of microprocessors and memory chips used in mobile phones, computers, cars, and various smart devices. FAB, short for Fabrication, refers to manufacturing. In the semiconductor industry, it specifically denotes the factory and its manufacturing process used to produce integrated circuits.
Main steps of the FAB process flow
The FAB process flow consists of several steps from wafer manufacturing to final testing, with each step significantly impacting the performance and yield of the chip. Here is a detailed interpretation of this complex process:
1. Wafer Preparation
The first step in making integrated circuits is to create silicon wafers. Polycrystalline silicon is purified into single crystal silicon using the reduction method, and then grown into large-diameter single crystal silicon columns using the pulling method (such as the Czochralski (CZ) growth method). The single crystal silicon column is then cut into thin slices and polished to form a smooth wafer, providing a substrate for subsequent processes.
The first step in making integrated circuits is to create silicon wafers. Polycrystalline silicon is purified into single crystal silicon using the reduction method, and then grown into large-diameter single crystal silicon columns using the pulling method (such as the Czochralski (CZ) growth method). The single crystal silicon column is then cut into thin slices and polished to form a smooth wafer, providing a substrate for subsequent processes.
2. Oxidation
In a clean environment, the wafer's surface is oxidized to form an insulating silicon dioxide film. This step is the basis for creating an insulating layer and subsequent masking process.
In a clean environment, the wafer's surface is oxidized to form an insulating silicon dioxide film. This step is the basis for creating an insulating layer and subsequent masking process.
3. Photolithography
Photolithography is a process of transferring circuit patterns to the surface of a wafer. This step involves a series of operations such as coating photoresist, drying, exposure (through masking), development, and hardening to finely control the pattern transfer process.
Photolithography is a process of transferring circuit patterns to the surface of a wafer. This step involves a series of operations such as coating photoresist, drying, exposure (through masking), development, and hardening to finely control the pattern transfer process.
4. Wet and Dry Etching
Etching is the process of removing material from selected areas to form circuit patterns. Wet etching uses chemical solutions, while dry etching (such as reactive ion etching) uses plasma etching technology, providing higher precision and pattern fidelity.
Etching is the process of removing material from selected areas to form circuit patterns. Wet etching uses chemical solutions, while dry etching (such as reactive ion etching) uses plasma etching technology, providing higher precision and pattern fidelity.
5. Ion Implantation
Ion implantation is used to dope wafers by injecting ions of dopants (such as boron or arsenic) into the wafer at high speed to change its electrical properties and form n-type or p-type silicon.
Ion implantation is used to dope wafers by injecting ions of dopants (such as boron or arsenic) into the wafer at high speed to change its electrical properties and form n-type or p-type silicon.
6. Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD)
CVD and PVD techniques are used to deposit insulating, conductive, and metal layers on the surface of the wafer. These films are used to form the various parts and interconnects of transistors.
CVD and PVD techniques are used to deposit insulating, conductive, and metal layers on the surface of the wafer. These films are used to form the various parts and interconnects of transistors.
7. Chemical Mechanical Polishing (CMP)
CMP is a process that flattens the surface of the wafer to ensure the accuracy and consistency of the subsequent stacking structure.
CMP is a process that flattens the surface of the wafer to ensure the accuracy and consistency of the subsequent stacking structure.
8. Hierarchical Process
The process from photolithography to CMP is repeated to build a complex multi-layer circuit structure. Each layer needs to be precisely aligned to ensure the correct connection.
The process from photolithography to CMP is repeated to build a complex multi-layer circuit structure. Each layer needs to be precisely aligned to ensure the correct connection.
9. Fine Metal Interconnection
The use of electroplating or CVD technology to form fine metal wires to connect transistors and other components to realize the function of the circuit.
The use of electroplating or CVD technology to form fine metal wires to connect transistors and other components to realize the function of the circuit.
10. Optical Inspection (AOI)
Automatic optical inspection equipment is used to check for errors and defects in the pattern to ensure that each step of the process is carried out in accordance with the design standards.
Automatic optical inspection equipment is used to check for errors and defects in the pattern to ensure that each step of the process is carried out in accordance with the design standards.
11. Packaging
The finished wafer is cut into individual chips, and the chips are installed in the package and connected to the external interface through wire bonding, welding, or other methods.
The finished wafer is cut into individual chips, and the chips are installed in the package and connected to the external interface through wire bonding, welding, or other methods.
12. Testing and Sorting
Electrical performance tests are performed on each packaged chip, and the chips are graded and sorted according to the test results.
Electrical performance tests are performed on each packaged chip, and the chips are graded and sorted according to the test results.
The FAB process is a high-tech, high-precision, and high-difficulty technical challenge involving a lot of advanced physics, chemistry, and materials science knowledge. With the advancement of technology, the FAB process is developing towards smaller process size, higher integration, and lower energy consumption to meet the needs of miniaturized and high-performance electronic products in the high-tech era. The improvement of each step of the process is a testimony to the continuous innovation and development of the integrated circuit manufacturing industry and is also an important cornerstone of modern industrial civilization.
