Advancements in GaN Technology

The semiconductor industry is evolving quickly, and Gallium Nitride (GaN) technology is becoming a transformative force in power electronics and radio frequency (RF) applications. The collaboration between silicon carbide (SiC) and silicon-based GaN devices is increasingly significant, especially in GaN-on-SiC configurations. Although SiC substrates tend to be expensive, advancements in SiC crystal growth technology are expected to lower overall device costs, thereby increasing the attractiveness of GaN for various applications.

In the RF market, Gallium Nitride (GaN) is emerging as a prominent technology alongside two major competitors: Gallium Arsenide (GaAs) and silicon-based Lateral Diffused Metal Oxide Semiconductor (LDMOS). While GaAs and LDMOS have carved out their specific applications, they face limitations in operating frequencies, typically below 3 GHz. GaN addresses this gap by combining the strong power capabilities of silicon-based LDMOS with the high-frequency advantages of GaAs.

Currently, GaAs is preferred for small base station applications. However, as the production costs for GaN decrease, it is expected to gain a foothold in this market segment. This shift is likely to create a competitive landscape where both GaAs and GaN power amplifiers coexist, each leveraging their unique strengths in terms of high power and efficiency.

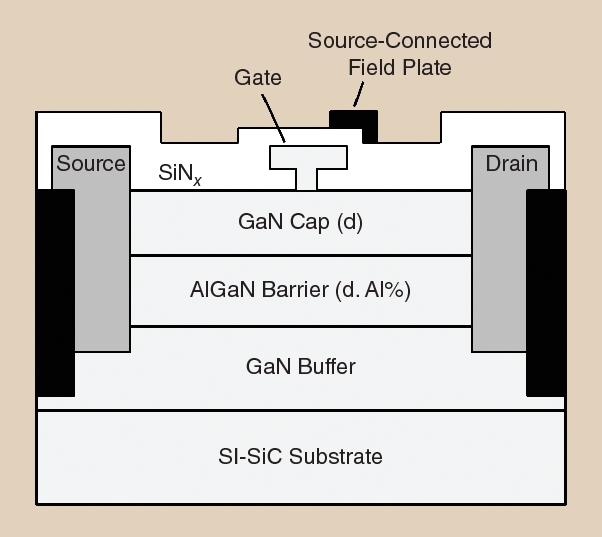

The structural characteristics of Gallium Nitride (GaN) ensure outstanding performance, particularly through the creation of a heterojunction two-dimensional electron gas. This capability gives GaN a clear edge over Silicon Carbide (SiC) devices in high-frequency applications. While SiC is recognized for its ability to manage high voltages, GaN devices dominate in compact, cost-sensitive applications, including lightweight consumer electronics, drone power supplies, and advanced wireless charging technologies.

The fast charging market is a critical area for GaN development, with the automotive industry standing out as a key application domain. GaN power devices are highly effective in a range of automotive functions, such as DC/DC converters, DC/AC inverters, AC/DC rectifiers, and on-board chargers (OBCs). The benefits of GaN—such as reduced on-resistance, rapid switching speeds, elevated power output density, and exceptional energy conversion efficiency—result in significantly lower power losses and enhanced energy savings. Moreover, these advantages streamline the miniaturization of electronic systems.

In summary, GaN technology is on an upward trajectory in both RF and power electronics sectors. With ongoing technological advancements and decreasing costs, GaN is set to play a crucial role in the evolution of high-performance electronic devices.

Semicorex offers industry-leading solutions, ensuring your semiconductor devices meet the highest performance standards with precision and reliability. If you have any inquiries or need additional details, please don't hesitate to get in touch with us.
