Epi-wafers—comprising both the epitaxial layer and the substrate—are invaluable in the semiconductor industry, as they enable the production of high-performance devices. For instance, by growing a thin layer of Gallium Nitride (GaN) on a less expensive silicon substrate, manufacturers can leverage the advantageous properties of wide bandgap semiconductors while using cost-effective first-generation semiconductor materials as the base. This approach significantly reduces costs associated with the more expensive third-generation semiconductor materials.

However, the heterogeneous structures present challenges. Issues such as lattice mismatch can be likened to constructing a framework on a plastic foundation, leading to potential structural weaknesses. Additionally, discrepancies in thermal expansion coefficients may result in complications during temperature fluctuations, and poor thermal conductivity—especially of silicon—can further complicate device performance.

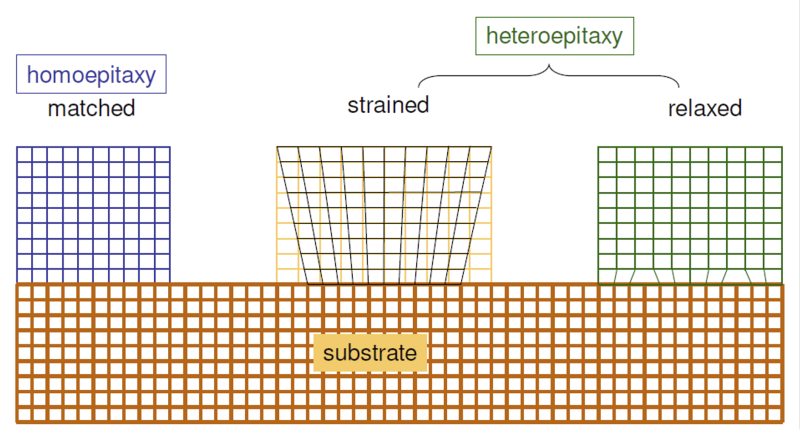

Epitaxial growth can be categorized into two primary types: homogeneous and heterogeneous epitaxy. Homogeneous epitaxy involves the growth of an epitaxial layer that matches the substrate material. This method offers several advantages, particularly in enhancing product stability and reliability. Despite sharing the same material properties, homogeneous epitaxy improves the purity and uniformity of the wafer surface. Compared to mechanically polished substrates, epitaxially processed substrates exhibit superior surface flatness, cleanliness, and significantly fewer micro-defects and impurities. Consequently, these improvements lead to more uniform resistivity and better control over surface defects such as dislocations, stacking faults, and particles.

Epi-wafers are particularly relevant in various semiconductor applications, with notable types including:

SiC Epitaxy: Silicon Carbide (SiC) epitaxy is crucial for high-power and high-frequency applications, providing thermal stability and efficiency.

Si Epitaxy: Silicon epitaxy is foundational for the semiconductor industry, allowing for enhanced performance in traditional silicon-based devices.

GaN Epitaxy: Gallium Nitride epitaxy is essential for optoelectronic devices, including LEDs and high-frequency transistors, due to its wide bandgap properties.

Gallium Oxide Epitaxy: Emerging as a potential material for high-voltage and high-frequency applications, gallium oxide epitaxy is gaining traction for its unique characteristics.
