Ion Implantation: Halo Implant
2024-12-31

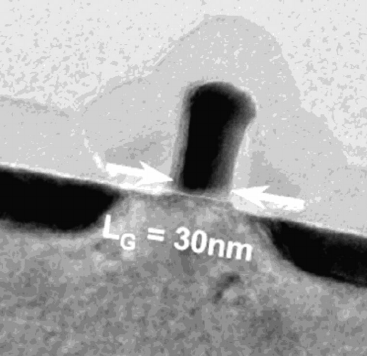

What is Ion Implantation?
In semiconductor manufacturing, ion implantation refers to the process of using high-energy accelerators to inject specific types of impurity atoms, such as boron or phosphorus, into a silicon substrate at high speeds. This process is crucial for altering the electrical properties of the substrate, enabling the adjustment of transistor threshold voltages and the formation of source and drain structures.
Why Implement Halo IMP?
As the feature sizes of MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) shrink to deep submicron levels, short channel effects (SCEs) become a significant concern. To address these issues, particularly excessive subthreshold leakage current, a technique known as Halo Implant is introduced. Halo Implant is a specialized ion implantation method that involves injecting dopant ions of the same type as the substrate at a large angle into the region between the source/drain and the substrate. This creates a high-doping concentration area known as the Halo structure. The primary purpose of this structure is to prevent the depletion region of the source/drain from extending into the channel, thereby suppressing short channel effects and drain-induced barrier lowering (DIBL), and reducing unwanted leakage currents.
Where is Halo IMP Positioned?
In the fabrication of MOSFETs, especially at deep submicron process nodes, a high-doping concentration region known as the Halo structure is formed between the source/drain and the substrate to prevent the depletion layer from extending into the channel, which could lead to source-drain punch-through and increased leakage current. This structure is typically located beneath the Lightly Doped Drain (LDD) region and shares the same conductivity type as the substrate but with a higher doping concentration.
How Does Halo IMP Enhance Device Performance?
Reducing Short Channel Effects
The Halo structure effectively prevents the extension of the source/drain depletion region into the channel area, thereby suppressing source-drain punch-through caused by charge sharing.
Lowering Leakage Current
By increasing the doping concentration near the channel edge, the gate’s control over the channel is enhanced, reducing unnecessary leakage currents.
Improving Gate Control
The presence of the Halo improves the gate’s ability to control carrier flow in the channel, allowing the gate voltage to more effectively modulate the electric field distribution within the channel.
Optimizing Threshold Voltage
A well-designed Halo can adjust the threshold voltage of the MOSFET, making it more suitable for low-power applications.
Enhancing Mobility and Speed
Lower channel doping concentration helps improve carrier mobility, while reducing junction capacitance and delay time, thus enhancing circuit speed performance.
What Are the Technical Challenges of Halo IMP?
Despite the numerous benefits of Halo IMP, it also introduces several new challenges:
Reverse Short Channel Effect
Improper Halo design may lead to reverse short channel effects, affecting the normal operation of the device.
Reduced Drive Current
Excessive Halo doping can result in a decrease in drive current.
Parasitic Current Issues
Parasitic currents such as Band-to-Band Tunneling (BTBT) and Gate-Induced Drain Leakage (GIDL) may increase, depending on the specific shape and doping distribution of the Halo region.
What Are the Key Parameters of Halo IMP?
Injection Angle
The angle determines the width and depth of the Halo region. A larger injection angle can effectively prevent increased leakage current without significantly increasing source/drain parasitic capacitance.
Injection Energy
This affects the depth and width of the Halo region. Higher energy allows dopants to penetrate deeper into the sub-channel area, but excessive energy can raise the threshold voltage.
Injection Dose
The dose directly determines the doping concentration of the Halo region. An appropriate dose is crucial for balancing the suppression of short channel effects and avoiding excessive leakage current.
