Gallium Oxide Substrate

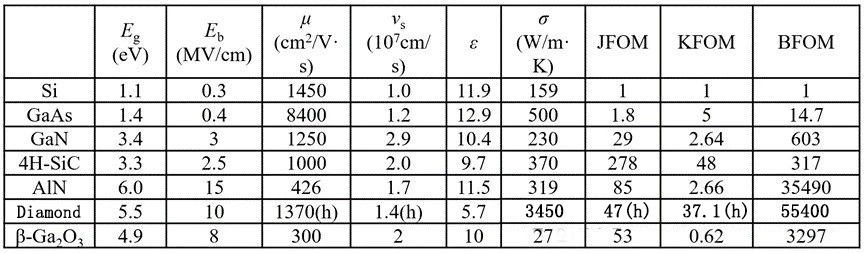

Semicorex Gallium Oxide substrate is emerging as a revolutionary ultra-wide bandgap (UWBG) semiconductor material, rapidly gaining attention in the field of power electronics. Known for its exceptional electrical properties, Ga₂O₃ offers a significant advantage over traditional semiconductor materials like silicon (Si) and even over third-generation semiconductors such as silicon carbide (SiC) and gallium nitride (GaN). With a breakdown electric field strength of up to 8 MV/cm and lower theoretical conduction losses, Ga₂O₃ substrates are uniquely suited for high-voltage, high-frequency, and high-temperature applications. These characteristics make Gallium Oxide Ga₂O₃ an ideal candidate for a wide range of applications, from power converters to electric vehicles, aerospace systems, and more.







1. Ultra-High Breakdown Electric Field Strength
One of the most notable features of Gallium Oxide substrate is its extremely high breakdown electric field strength, which exceeds that of other wide bandgap materials. At up to 8 MV/cm, Ga₂O₃ outperforms silicon carbide (SiC) and gallium nitride (GaN), both of which are known for their high breakdown strength but fall short when compared to Gallium Oxide substrate. This allows Ga₂O₃-based devices to operate under significantly higher voltages while maintaining compact designs. High breakdown strength is crucial for power electronics, as it enhances device reliability and performance, especially in high-power density applications.

2. Lower Theoretical Conduction Losses
Gallium Oxide devices boast lower conduction losses compared to their SiC and GaN counterparts. This is primarily due to Ga₂O₃'s lower on-resistance at equivalent voltage ratings. Lower on-resistance directly correlates to reduced energy loss during operation, improving overall system efficiency. In power electronic applications, where minimizing energy waste is critical, this advantage becomes increasingly important. For industries focused on power conservation and reducing heat generation, Gallium Oxide Ga₂O₃ substrates offer a pathway to more efficient, longer-lasting devices.

3. Good Thermal Management Capabilities
Although Gallium Oxide has a relatively low intrinsic thermal conductivity compared to SiC and GaN, this limitation can be mitigated through advanced thermal management techniques. With proper device packaging and heat dissipation methods, Ga₂O₃-based components can operate efficiently even in high-power density environments. Moreover, the ability to maintain stable performance at high temperatures makes Gallium Oxide devices particularly appealing for challenging industrial environments, where heat and power density are critical factors. When paired with external cooling technologies, Ga₂O₃ can outperform traditional materials in a variety of demanding applications.



With its unique set of properties, Gallium Oxide substrate is being explored for use in a variety of power electronic devices, particularly in applications where high voltage, high frequency, and high-temperature stability are paramount. Some of the most promising applications include:
