TaC Coating Susceptor
Quantity:
TaC Coating Susceptor
Semicorex TaC Coating Susceptor is designed to meet the stringent demands of epitaxy and Metal-Organic Chemical Vapor Deposition (MOCVD) processes.
Constructed with a foundation of high-purity graphite susceptor, the TaC Coating Susceptor boasts exceptional thermal conductivity and stability, this is a cornerstone in advanced MOCVD equipment as a wafer tray. Its primary role is to ensure the effective and efficient deposition of thin films, which is fundamental in the production of high-performance semiconductor devices.
Superior Protection to Wafer Trays with Ultra-High Purity TaC Coating
The TaC Coating Susceptor’s standout feature is its ultra-high purity Chemical Vapor Deposition (CVD) tantalum carbide (TaC) coating. This layer serves as a formidable shield for the underlying graphite susceptor, which is prone to oxidation at elevated temperatures. By providing a robust barrier, the TaC coating preserves the integrity of the graphite susceptor, enabling it to perform consistently under high-stress conditions and extending the lifespan of the wafer tray.
Temperature Stability and Thermal Shock Resistance of TaC Coated Wafer Trays
One of the most remarkable attributes of the TaC Coating Susceptor is its ability to maintain stability at temperatures exceeding 2200°C. This extraordinary temperature resilience ensures that the wafer tray can withstand the extreme thermal environments typical of epitaxy and MOCVD processes. Additionally, the TaC coating offers outstanding thermal shock resistance to wafer trays, which allows for rapid temperature fluctuations without compromising the graphite susceptor’s structural integrity. This capability accelerates operating cycles, enhancing overall process efficiency and throughput.
Chemical Inertness and Resistance of TaC Coated Wafer Trays to Reactive Gases
The chemical inertness of tantalum carbide is another significant advantage. The TaC Coating Susceptor exhibits exceptional resistance to a variety of reactive gases, including hydrogen (H2), ammonia (NH3), and silane (SiH4). Tantalum carbide remains inert even when exposed to these gases at high temperatures, ensuring that the graphite susceptor does not participate in unwanted chemical reactions that could compromise the manufacturing process. This inertness is particularly beneficial for wafer trays in environments where maintaining a pure and uncontaminated atmosphere is crucial for the deposition of high-quality films.
Enhanced Component Longevity to Graphite Susceptor and Quality Improvement
By integrating the TaC Coating Susceptor into semiconductor manufacturing processes, manufacturers can significantly enhance the longevity of wafer trays. The high temperature stability and chemical resistance of the TaC coating not only protect the graphite susceptor itself but also contribute to improved process yields and product quality. This is particularly important in the production of Gallium Nitride (GaN) and Silicon Carbide (SiC) devices, which are used in LEDs, deep ultraviolet (UV) applications, and power electronics.
Dimensional Tolerance and Adhesion to Graphite Susceptor
The TaC Coating Susceptor is engineered to meet stringent dimensional tolerances, ensuring precision and consistency in semiconductor manufacturing. The tantalum carbide coating exhibits strong adhesion to the graphite susceptor, providing a uniform and stable surface that maintains its dimensional integrity throughout the manufacturing process. This precision is critical in applications where even slight deviations can result in significant performance issues or defects in the final wafer tray.

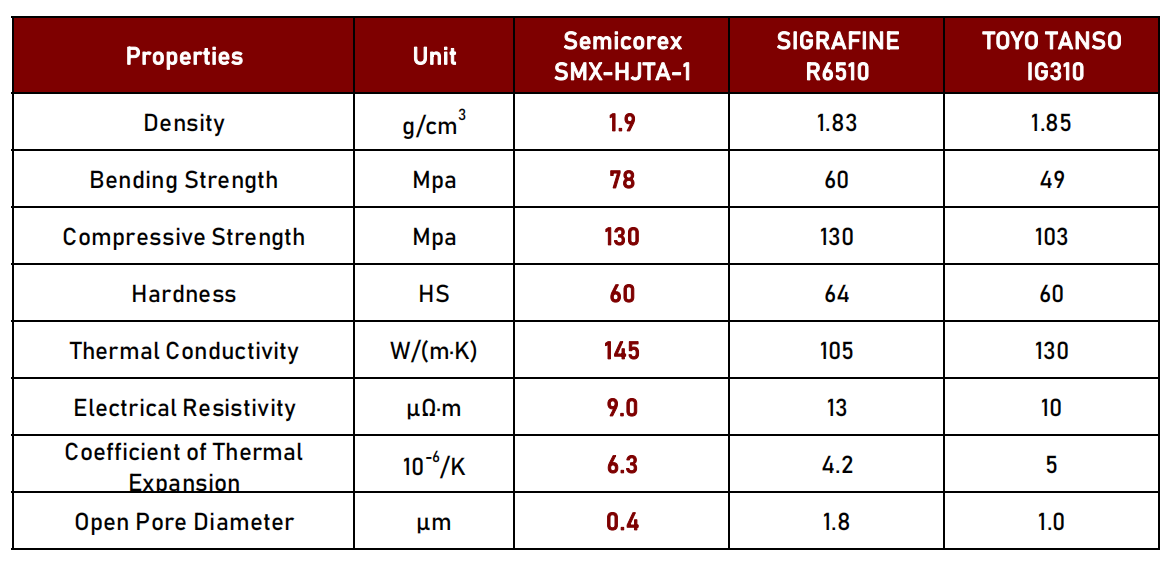

SMX-HJTA-1 Graphite Susceptor Substrate Exclusively for TaC Coating
