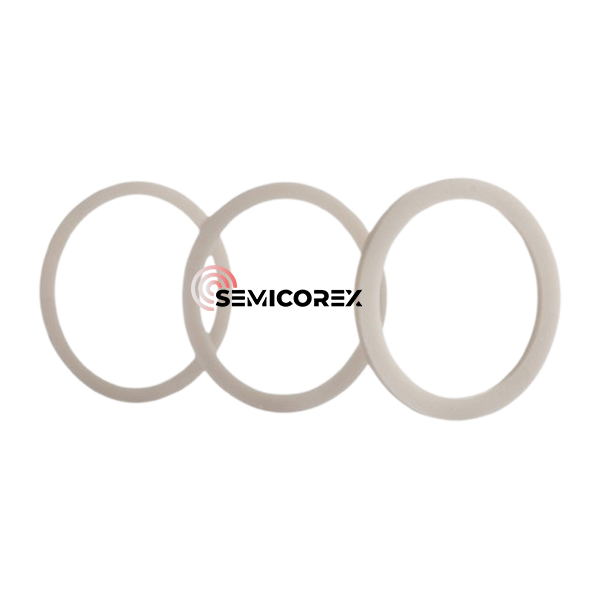

AlN Ring
Quantity:
AlN Ring
AlN Ring features high purity, outstanding thermal and electrical properties, and mechanical strength, is for a wide range of industrial applications.
Composed with minimal impurity content, this high-purity, non-toxic Aluminum Nitride is ideally suited for an array of high-end applications. Industries such as high-brightness light-emitting diodes (HBLEDs), optical communications, insulated-gate bipolar transistors (IGBTs), power devices, and thermoelectric coolers (TECs) find the AlN Ring indispensable due to Aluminum Nitride's superior properties.
Superior Thermal Conductivity of AlN Ceramic
One of the defining characteristics of the AlN Ring is its very high thermal conductivity, exceeding 200 W/mK. This property of Aluminum Nitride ensures efficient heat dissipation, making the AlN ceramic an ideal choice for applications requiring effective thermal management. By facilitating rapid heat transfer, the AlN Ring helps to maintain optimal temperatures in high-performance environments, thus extending the lifespan and efficiency of electronic devices.
Exceptional Electrical Insulation of AlN Ceramic
The AlN ceramic also boasts a high electrical insulation capacity, surpassing 1.1012 Ωcm. This significant attribute of Aluminum Nitrideensures minimal electrical interference, allowing the AlN ring to serve as a robust barrier against electric currents. Such reliability of Aluminum Nitride makes it an invaluable component in applications where electrical insulation is paramount, such as in laser-based equipment and semiconductor processing devices.
Robust Mechanical Strength of AlN Ceramic
Employing the double ring method, the AlN Ring demonstrates a biaxial strength greater than 320 MPa. This robustness of Aluminum Nitride ensures long-lasting durability under various operational stresses. AlN ceramic's mechanical resilience is a testament to its reliability in demanding conditions.
Minimal Thermal Expansion of AlN Ceramic
TheAlN ceramic exhibits low thermal expansion coefficients, ranging from 4 to 6×10^-6 K^-1 between 20 and 1000°C. This stability of Aluminum Nitride under temperature fluctuations minimizes the risk of structural deformation, thereby safeguarding the integrity of components it interacts with.
Enhanced Metallization Capabilities of AlN Ceramic
In addition to Aluminum Nitride's thermal and electrical properties, the AlN Ring offers excellent metalization capacity. This feature enables seamless integration with various metal-based components, expanding the AlN ceramic's versatility across different applications. Whether it’s for heat sinks or electronic packages, the AlN Ring provides a reliable foundation for further technological innovations.
Diverse Applications of the AlN Ceramic
The versatile nature of the AlN Ring makes it suitable for a wide range of applications:
- Heat Management: Serving as heat sinks and heat spreaders, the AlN Ring is instrumental in dissipating heat in high-performance electronic devices, ensuring they operate within safe temperature ranges.
- Electrical Insulation: Aluminum Nitride's exceptional insulation capabilities make it an ideal choice for chucks and clamp rings in semiconductor processing equipment, as well as electrical insulators for lasers, safeguarding sensitive electronic components from electrical interference.
- Semiconductor Processing: The AlN Ring is widely used in the handling and processing of silicon wafers, where its stability and insulation properties are of utmost importance.
- Microelectronic and Optoelectronic Applications of Aluminum Nitride: As substrates and insulators, the AlN Ring supports the functioning of microelectronic and optoelectronic devices, contributing to the miniaturization and efficiency of modern technological solutions.
- Sensor and Detector Applications of Aluminum Nitride: The AlN Ring is used as chip carriers for sensors and detectors, facilitating the accurate and reliable performance of these critical devices.
