Pyrolytic Carbon Coated Crucible
Quantity:

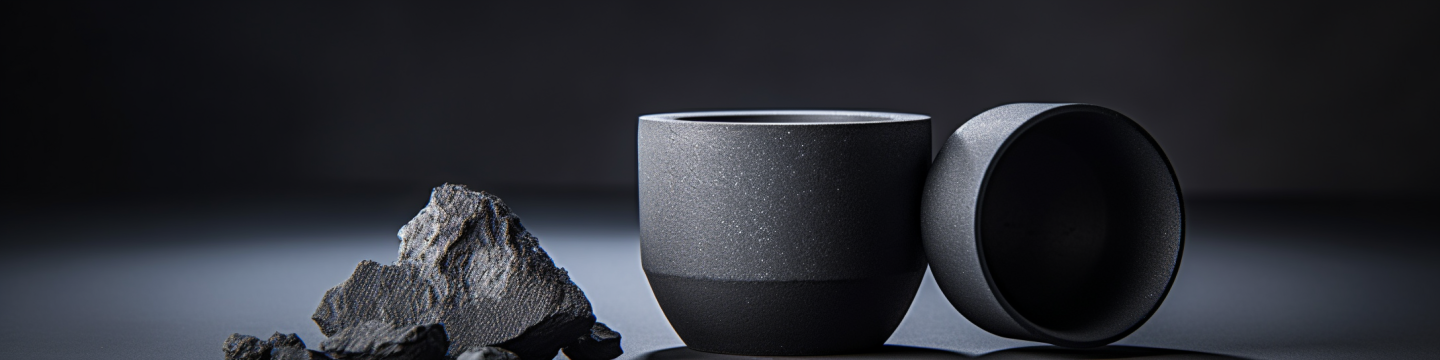

Pyrolytic Carbon Coated Crucible
Semicorex Pyrolytic Carbon Coated Crucible is a specialized container designed to withstand extreme temperatures and harsh chemical environments.
Material Characteristics
Semicorex Pyrolytic Carbon Coated Crucibles are specialized containers designed to withstand extreme temperatures and harsh chemical environments. They are produced by depositing pyrolytic carbon with high crystalline orientation onto a graphite substrate through chemical vapor deposition (CVD) at temperatures ranging from 1800°C to 2000°C. This process occurs under controlled furnace pressure using high-purity hydrocarbon gases, resulting in a coating that imparts superior material properties to the crucible.
Exceptional Temperature Resistance of Pyrolytic Carbon Graphite
Pyrolytic Carbon Coated Crucibles are capable of withstanding temperatures up to 3000°C, making them ideal for applications involving high thermal loads. This exceptional temperature resistance is due to the pyrolytic carbon coating, which provides a thermal barrier that protects the graphite substrate from degradation. The ability of the Pyrolytic Carbon Graphite to maintain structural integrity at such elevated temperatures ensures reliable performance in the most demanding thermal environments.
High Purity and Excellent Air Tightness of Pyrolytic Carbon Graphite
The purity level of Pyrolytic Carbon Coated Crucibles exceeds 99.99%, which is critical for processes that require contamination-free environments. The coated surface is extremely pure with zero porosity, ensuring that no impurities are introduced during high-temperature operations. This high level of purity, combined with excellent air tightness, makes these Pyrolytic Carbon Graphite Crucibles suitable for sensitive applications such as semiconductor manufacturing and material synthesis.
Non-Wetting and Chemical Resistance of Pyrolytic Carbon Graphite
One of the most advantageous properties of Pyrolytic Carbon Coated Crucibles is their non-wetting surface. This means that the crucible repels and does not absorb liquids, preventing molten materials from sticking to the surface. This property facilitates easy removal of processed materials and prevents contamination, enhancing the efficiency and cleanliness of the process. Additionally, the Pyrolytic Carbon Graphite Crucibles exhibit excellent chemical resistance, making them suitable for handling corrosive substances without compromising their structural integrity.
Minimal Outgassing of Pyrolytic Carbon Graphite
Pyrolytic Carbon Coated Crucibles are ideal for use in vacuum or inert gas environments such as nitrogen or argon. Their minimal outgassing properties ensure that they do not release contaminants into the controlled atmosphere, which is crucial for maintaining the purity of the process environment. This feature of Pyrolytic Carbon Graphite is particularly important in applications where even trace amounts of outgassing can affect the outcome of the process.
Applications of Pyrolytic Carbon Graphite Crucibles
The unique material characteristics of Pyrolytic Carbon Coated Crucibles make them indispensable in a variety of high-technology and industrial applications.
Material Science and Semiconductor Industry
In the field of material science, Pyrolytic Carbon Coated Crucibles are essential for synthesizing advanced materials. Their ability of Pyrolytic Carbon Graphite to withstand extreme temperatures and provide a contamination-free environment is crucial for high-purity material synthesis. In the semiconductor industry, these crucibles are used for crystal growth processes, including the production of silicon and sapphire crystals. The purity and non-wetting properties of the crucibles ensure the quality and consistency of the grown crystals.
Chemical Industry
Pyrolytic Carbon Coated Crucibles are widely used in the chemical industry to handle high-temperature and corrosive reactions. Pyrolytic Carbon Graphite's excellent chemical resistance and ability to operate under extreme conditions make it ideal for processes that involve aggressive chemicals. These Pyrolytic Carbon Graphite Crucibles ensure the integrity of the reaction while preventing contamination and degradation.
Glass Manufacturing
In glass manufacturing, Pyrolytic Carbon Coated Crucibles are utilized for melting glass due to their thermal stability and high-temperature resistance. The non-wetting property of the crucibles prevents molten glass from sticking to the surface, facilitating smooth and efficient glass production processes. The durability of these Pyrolytic Carbon Graphite Crucibles under high thermal loads ensures consistent and high-quality glass products.
Nuclear Industry
The nuclear industry also benefits from the use of Pyrolytic Carbon Coated Crucibles. They are employed in the processing of nuclear materials, where their high purity, chemical resistance, and thermal stability are critical. The ability of these Pyrolytic Carbon Graphite Crucibles to maintain their integrity under extreme conditions ensures the safety and efficiency of nuclear material processing.
Jewelry and Art
In the fields of jewelry making and art, Pyrolytic Carbon Coated Crucibles are used for casting precious metals. Their non-wetting surface and high-temperature resistance are essential for achieving precise and clean castings. The purity of the Pyrolytic Carbon Graphite Crucibles ensures that no contaminants are introduced into the molten metals, maintaining the quality of the final products.
