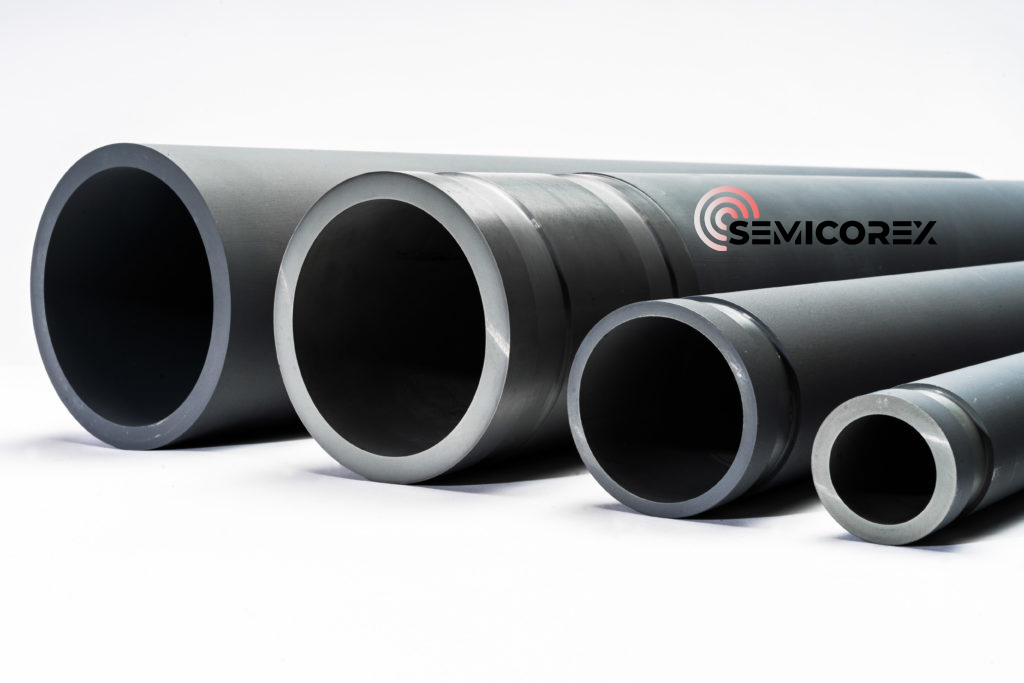

Si3N4 Immersion Heater Tube
Advanced Si3N4, a substance renowned for its remarkable mechanical and thermal qualities that make it perfect for high-temperature applications, is used to create the Si3N4 Immersion Heater Tube.
Improved Toughness and Heat Conductivity
Our immersion heater tubes have a remarkable 50 W/m·K thermal conductivity, which is far higher than the 17 W/m·K thermal conductivity of traditional Si3N4. The heating process is optimized by the more effective heat transmission into the molten metal made possible by this improvement in thermal conductivity. Additionally, the Immersion Heater Tubes' exceptional 7.7 MPa·m^1/2 impact fracture toughness rating guarantees that they may endure industrial use without losing structural integrity.
Better Resistance to Corrosion
The exceptional corrosion resistance of the Si3N4 Immersion Heater Tube is one of its main benefits. Because it stops impurities from eluting into the molten metal, this characteristic is essential for preserving the purity of the zinc and aluminum melts. Our tubes guarantee that the metal stays clean, maintaining its quality and usability by shielding the internal heating element or gas burner from corrosive surroundings.
Resistance to Thermal Shock
The Si3N4 Immersion Heater Tube is made to withstand large temperature changes without degrading its functionality. Even when the temperature of the aluminum liquid fluctuates greatly, it can still operate dependably thanks to Si3N4's strong thermal shock resistance. This guarantees continuous functioning and efficiency during batch operations because repeated plugging and unplugging won't impact the tube's performance.
For high-temperature power engineering applications where corrosion and wear resistance are critical, our heater tubes are made to last. The immersion heater tubes' service life is prolonged by Si3N4's resilience, which makes them an affordable option for industrial heating requirements. They offer versatility and dependability in a variety of configurations and come with plain ends, grooved ends for assembly with metal flanges, or integral collars.
Operation

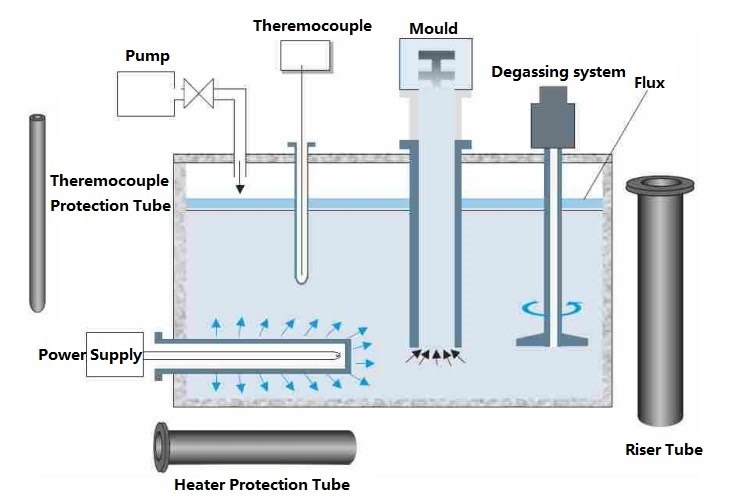

Effectively transferring heat into molten non-ferrous metals while protecting the internal heating mechanism is the main purpose of the Si3N4 Immersion Heater Tube.
In order to shield the interior heating components from the extreme conditions of molten metal settings, the Si3N4 Immersion Heater Tube is essential. The Immersion Heater Tube lowers maintenance needs and operating expenses by serving as a barrier against corrosion and wear, ensuring the heating element or gas burner's durability and dependability.
UtilizingSi3N4's excellent thermal conductivity, our immersion heater tubes offer exceptional heat transfer capabilities. This effectiveness is essential in industrial settings where ideal melting conditions for metals like zinc and aluminum require exact temperature control. The Immersion Heater Tube's capacity to quickly and evenly disperse heat improves energy use and process efficiency.
The sturdy characteristics of our ceramic tubes allow them to be used for high-temperature applications other than melting metal. In coal-fired gas turbines, for example, they can be employed in ceramic heat exchangers, where the tubes help transport heat in fluidized bed systems. These tubes can also be included into sophisticated heat exchanger designs using lithography-based ceramic production techniques, which, when combined with integrated microstructures, improve the heat transfer capacities.
Our mission at Semicorex is to provide long-lasting, high-performance products, such as the Si3N4 Immersion Heater Tube, that are specifically designed to satisfy the demanding requirements of contemporary industrial processes.
